Description

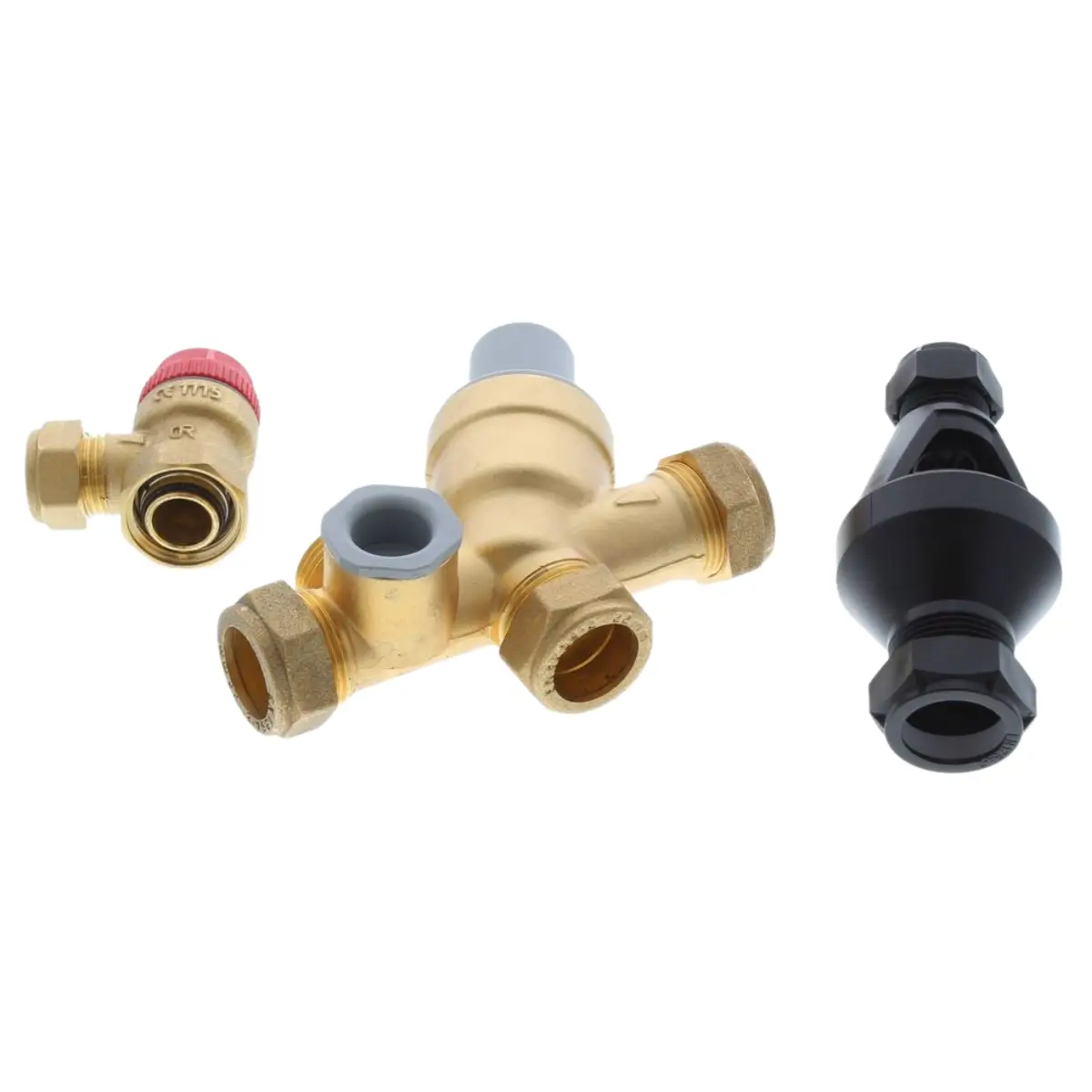

The Ariston safety device pack 60000225 is a brand-new genuine Ariston replacement pack for selected Aquabravo, Classico and Primo unvented water heaters.
Designed to help control incoming mains pressure, prevent backflow and safely discharge excess pressure, this pack includes a tundish, pressure relief valve and inlet control valve. It is supplied under the exact manufacturer part number 60000225 and GTIN 3234090564235.
Product Details
Product name: Ariston Safety Device Pack
Brand: Ariston
Manufacturer part number: 60000225
Condition: New
GTIN / EAN: 3234090564235
Warranty: 12 months
Parts Included in the Pack:
Tundish
Pressure relief valve
Inlet control valve
Appliance Compatibility
This Ariston safety device pack is suitable for the following selected appliances.
Ariston Aquabravo
Aquabravo ITD 130 ELEC
Aquabravo ITD 150 ELEC
Aquabravo ITD 215 ELEC
Aquabravo ITD 305 ELEC
Aquabravo ITI 80 ELEC
Aquabravo ITI 130 ELEC
Aquabravo ITI 150 ELEC
Aquabravo ITI 215 ELEC
Aquabravo ITI 255 ELEC
Aquabravo ITI 305 ELEC
Aquabravo ITSI 215 ELEC
Aquabravo ITSI 255 ELEC
Aquabravo ITSI 305 ELEC
Ariston Classico STD
Classico STD 125
Classico STD 125 ELEC
Classico STD 125 V2 ELEC
Classico STD 150
Classico STD 150 ELEC
Classico STD 150 V2 ELEC
Classico STD 210
Classico STD 210 ELEC
Classico STD 210 V2 ELEC
Classico STD 300
Classico STD 300 ELEC
Classico STD 300 V2 ELEC
Ariston Classico STI
Classico STI 125
Classico STI 125 ELEC
Classico STI 125 V2 ELEC
Classico STI 150
Classico STI 150 ELEC
Classico STI 150 V2 ELEC
Classico STI 210
Classico STI 210 ELEC
Classico STI 210 V2 ELEC
Classico STI 300
Classico STI 300 ELEC
Classico STI 300 V2 ELEC
Ariston Primo ITD
Primo ITD 100 NEW ELEC
Primo ITD 125 ELEC
Primo ITD 150 ELEC
Primo ITD 175 NEW ELEC
Primo ITD 210 ELEC
Primo ITD 250 NEW ELEC
Primo ITD 300 ELEC
Ariston Primo ITI
Primo ITI 100 NEW ELEC
Primo ITI 125 ELEC
Primo ITI 150 ELEC
Primo ITI 175 NEW ELEC
Primo ITI 210 ELEC
Primo ITI 250 NEW ELEC
Primo ITI 300 ELEC
Ariston Primo ITSI and Twin Models
Primo ITSI 300 ELEC
Primo TWN ITSI 210 ELEC
Primo TWN ITSI 250 ELEC
Primo TWN ITSI 300 ELEC
The supplied appliance list contained repeated model entries. Identical duplicates have been listed once above for clarity.
What Does the Ariston Safety Device Pack Do?
The Ariston 60000225 safety device pack protects compatible unvented water heaters from unsafe pressure conditions.
Controls Incoming Mains Pressure
The inlet control valve reduces high incoming mains pressure to a safer operating level. The supplied technical information specifies a regulated pressure of approximately 3.5 bar. This helps protect the cylinder and connected pipework from excessive incoming water pressure.
Releases Excess Pressure
The pressure relief valve opens if the internal pressure rises beyond the intended operating level. The supplied information specifies a relief setting of 6 bar. Any discharged water is directed through the tundish, allowing the discharge to be safely managed and made visible.
Prevents Backflow
The inlet control arrangement also prevents heated water from flowing backwards into the cold-water supply. This helps maintain one-way water flow into the cylinder and protects the incoming mains-water system.
Delivery & Collection
Collection is available from our Newcastle showroom at Unit 5, Penn Street, Newcastle upon Tyne, NE4 7BG, usually on the same day. We also offer fast UK delivery through Royal Mail First Class, with most orders arriving within one to two working days.
Water-heater safety components should be installed by a suitably qualified professional.
Warranty
This brand-new genuine Ariston safety device pack is supplied with a 12-month warranty. Warranty claims may be subject to inspection and confirmation that the correct product was selected and professionally installed.
Returns
We accept returns within 30 days of delivery. The product must be unused, unfitted and returned in its original unopened packaging with all seals intact. We cannot accept returns for components that have been fitted, used, damaged or returned in an unsuitable condition. Check the MPN and complete appliance model carefully before ordering.
Frequently Asked Questions
Is the Ariston 60000225 safety device pack genuine?
Yes. This is a brand-new genuine Ariston replacement pack supplied under manufacturer part number 60000225.
What components are included?
The pack includes a tundish, pressure relief valve and inlet control valve.
Which appliances does it fit?
It fits selected Ariston Aquabravo, Classico and Primo water heaters listed in the compatibility section above.
What pressure does the inlet valve regulate to?
The supplied product information states that the incoming water pressure is reduced to approximately 3.5 bar.
At what pressure does the relief valve open?
The supplied technical information states that the pressure relief valve opens at 6 bar.
What does the tundish do?
The tundish provides a visible route for water discharged from the safety valve and forms part of the safe discharge arrangement.
Does it come with a warranty?
Yes. The new genuine Ariston safety device pack is supplied with a 12-month warranty.
Who should install the safety device pack?
Installation and testing should be completed by a suitably qualified professional experienced with unvented hot-water systems.
