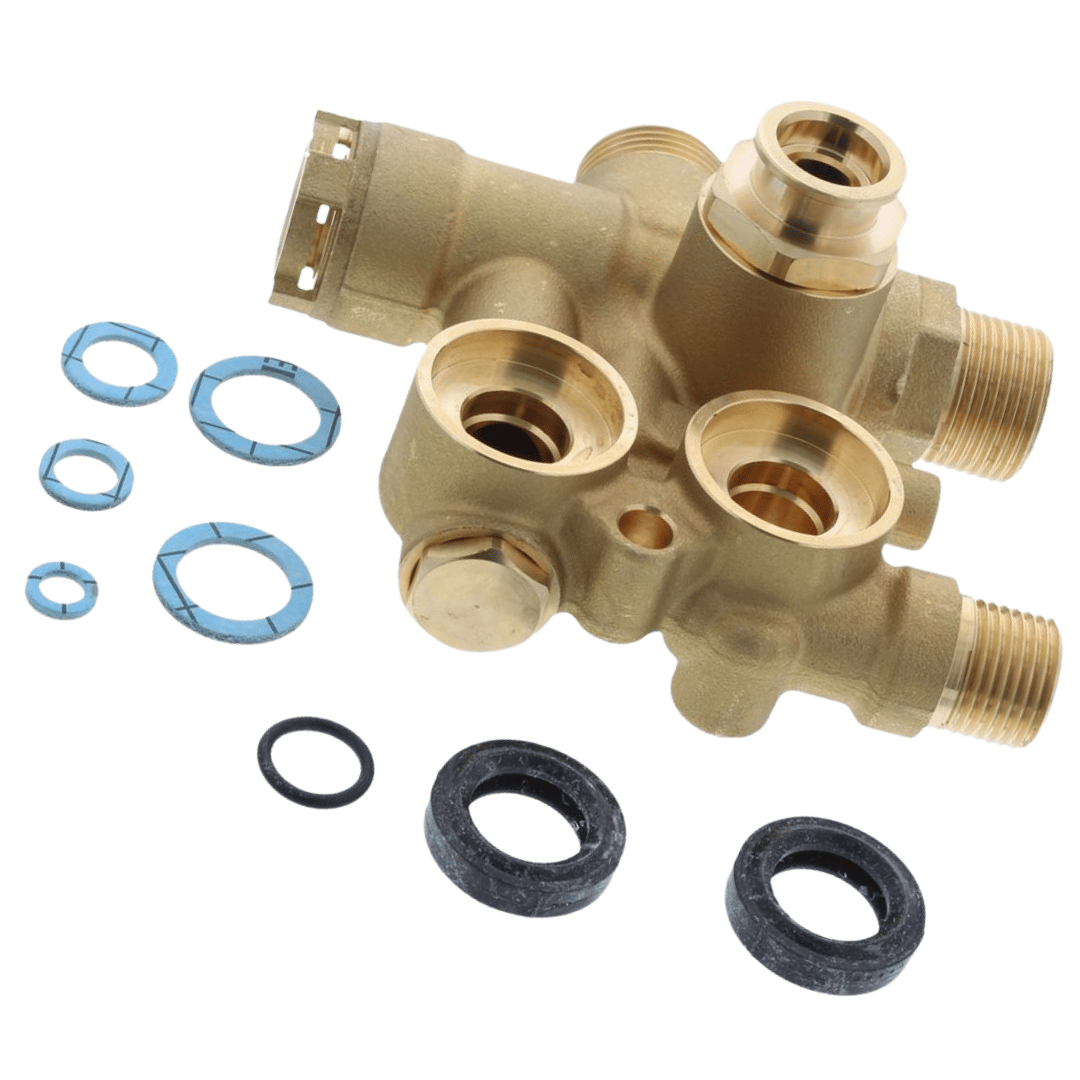

Baxi 7224763 3 Way Valve Assembly Kit – Genuine New
The Baxi 7224763 3 way valve assembly is a genuine brand-new replacement used across selected Baxi, Main and Potterton combi boilers.
It is commonly referred to as a 3 way valve assembly or diverter valve assembly. Its role is to direct heated water to the correct circuit depending on whether the boiler is supplying central heating or domestic hot water.
Part number 7224763 is listed for several popular boiler ranges, including Baxi Duo-tec, Baxi Platinum, Main Combi Eco and Potterton Gold.
Because some compatible models differ according to serial number, the exact boiler details should always be checked before ordering.
Compatible Baxi Duo-tec Boilers
Baxi Duo-tec 24 Series
- Duo Tec 24 HE – GC No. 47-075-23
- Duo Tec 24 HE A – After Serial No. BTG0815, Issue 9 – GC No. 47-075-35
- Duo Tec 24 HE A – Before Serial No. BTG0815, Issue 9 – GC No. 47-075-35
Baxi Duo-tec 28 Series
- Duo Tec 28 HE – GC No. 47-075-25
- Duo Tec 28 HE A – After Serial No. CAC0929, Issue 9 – GC No. 47-075-36
- Duo Tec 28 HE A – Before Serial No. CAC0929, Issue 9 – GC No. 47-075-36
Baxi Duo-tec 33 Series
- Duo Tec 33 HE – GC No. 47-075-24
- Duo Tec 33 HE A – After Serial No. BTH1112, Issue 9 – GC No. 47-075-37
- Duo Tec 33 HE A – Before Serial No. BTH1112, Issue 8 – GC No. 47-075-37
Baxi Duo-tec 40 Series
- Duo Tec 40 HE – GC No. 47-075-26
- Duo Tec 40 HE A – Issue 8 – GC No. 47-075-38
Compatible Baxi Combi HE Boilers
Baxi Combi HE Series
- Combi 24 HE – GC No. 47-075-20
- Combi 28 HE – GC No. 47-075-21
- Combi 33 HE – GC No. 47-075-22
Compatible Baxi Platinum Boilers
Baxi Platinum Combi 24
- Platinum Combi 24 HE A – After Serial No. BMY0815, Issue 6 – GC No. 47-075-31
- Platinum Combi 24 HE A – Before Serial No. BMY0815, Issue 6 – GC No. 47-075-31
Baxi Platinum Combi 28
- Platinum Combi 28 HE A – After Serial No. BNC0932, Issue 7 – GC No. 47-075-32
- Platinum Combi 28 HE A – Before Serial No. BNC0932, Issue 7 – GC No. 47-075-32
Baxi Platinum Combi 33
- Platinum Combi 33 HE – GC No. 47-075-29
- Platinum Combi 33 HE A – After Serial No. BNE1112, Issue 5 – GC No. 47-075-33
- Platinum Combi 33 HE A – Before Serial No. BNE1112, Issue 6 – GC No. 47-075-33
Baxi Platinum Combi 40
- Platinum Combi 40 HE – GC No. 47-075-30
- Platinum Combi 40 HE A – Issue 4 – GC No. 47-075-34
Compatible Main Boilers
Main Combi Eco Series
- Main Combi 25 Eco – GC No. 47-467-01
- Main Combi 30 Eco – GC No. 47-467-03
Compatible Potterton Boilers
Potterton Gold 24 HE A Combi
- Gold 24 HE A Combi – After Serial No. BMX0815 / GNH0815 – GC No. 47-393-18
- Gold 24 HE A Combi – Before Serial No. BMX0815 / GNH0815 – GC No. 47-393-18
Potterton Gold 28 HE A Combi
- Gold 28 HEA Combi – After Serial No. BNF0932 / GNK0932 – GC No. 47-393-19
- Gold 28 HEA Combi – Before Serial No. BNF0932 / GNK0932 – GC No. 47-393-19
Potterton Gold 33 HE A Combi
- Gold 33 HE A Combi – After Serial No. GNL1112 – GC No. 47-393-20
- Gold 33 HE A Combi – Before Serial No. GNL1112 – GC No. 47-393-20
Always check the brand, exact boiler model, GC number and serial number before ordering.
What Does a 3 Way Valve Assembly Do?
The 3 way valve directs heated water between the boiler’s central heating circuit and domestic hot water circuit.
When there is a demand for hot water, the valve moves to direct heat towards the domestic hot water side.
When central heating is required, the valve changes position so heated water can circulate through the radiators.
Because of this dual role, the component is also commonly known as a diverter valve.
Please note: Before placing your order you must check your part matches the Manufacturer Part Number stated above
