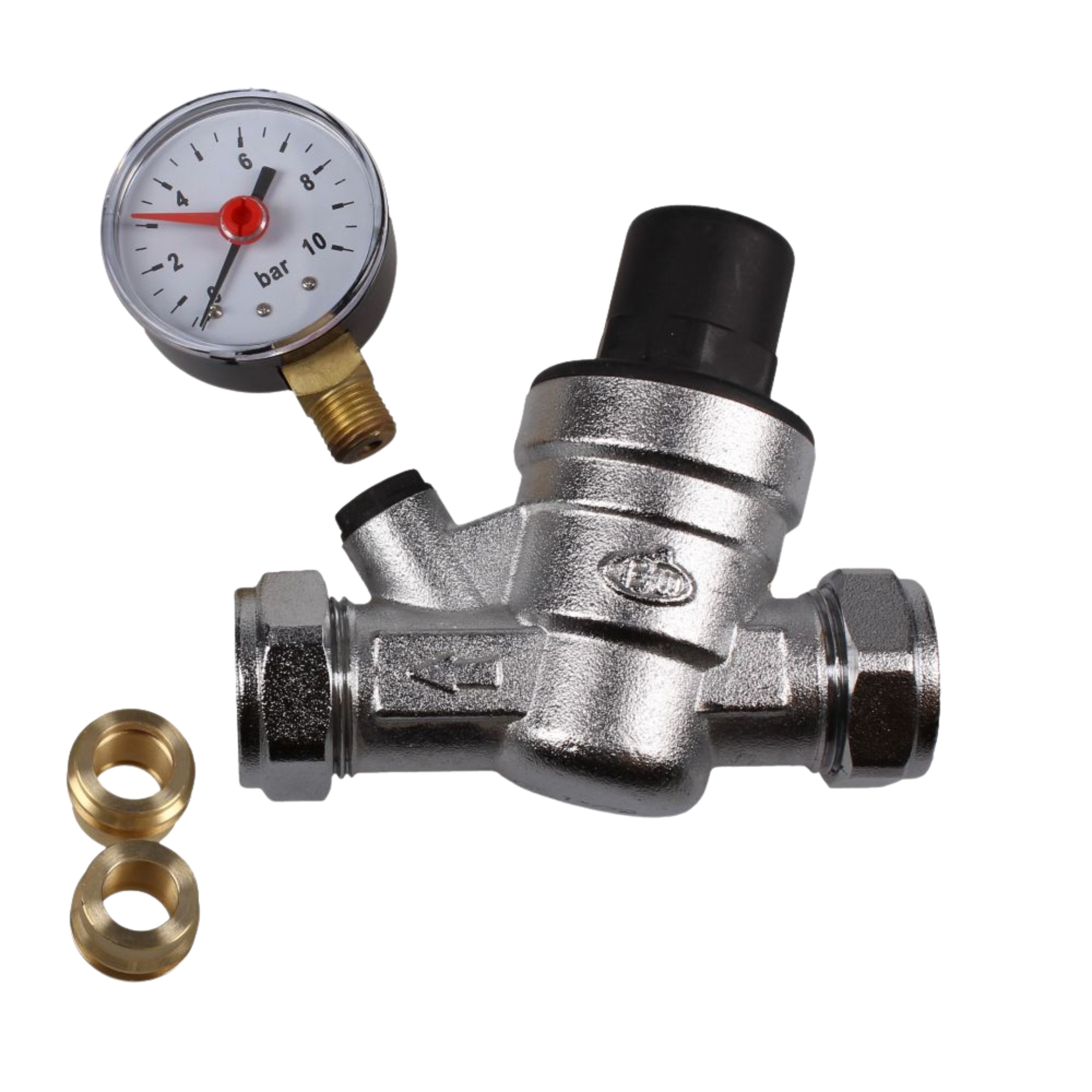

Evolve 15 & 22mm Pressure Reducing Valve With Gauge | Brass Water Pressure Regulator

The Evolve Pressure Reducing Valve with Gauge (15mm & 22mm) is designed to deliver precise and reliable water pressure control in domestic plumbing systems. Suitable for potable water applications, this adjustable valve helps protect pipework, fittings, and appliances from excessive pressure.

With an adjustable outlet pressure range from 1 to 6 bar and factory pre-set at 3 bar, it ensures consistent system performance and prevents damage caused by pressure fluctuations. The integrated 0–10 bar pressure gauge allows easy monitoring and accurate adjustment during installation or maintenance.

Built for versatility, this valve can be installed in both horizontal and vertical positions, making it ideal for a wide range of plumbing configurations. With a maximum inlet pressure of 16 bar and operating temperature up to 65°C, it is a dependable solution for both residential and light commercial systems.

Technical Specifications

• Brand: Evolve
• Product Type: Pressure Reducing Valve with Gauge
• Connection Sizes: 15mm & 22mm
• Max Inlet Pressure: 16 bar
• Outlet Pressure Range: 1–6 bar
• Factory Pre-set: 3 bar
• Gauge Range: 0–10 bar
• Max Temperature: 65°C
• Installation: Horizontal or Vertical

Delivery and Collection

You can collect this product directly from our showroom at Unit 5, Penn Street, Newcastle upon Tyne, NE4 7BG. Most orders are ready the same day, and our team ensures your collection is fast and convenient. Simply select the collection option at checkout, and we’ll have your order ready for pickup.

We also offer fast UK delivery via Royal Mail First Class, with most products arriving within 1–2 working days. Each item is securely packaged to prevent damage during shipping. For safety and optimal results, we recommend installation by a qualified plumbing professional.

FAQs

Q: What does a pressure reducing valve do?

It regulates incoming water pressure to a safe and consistent level, protecting your plumbing system and appliances.

Q: What pressure should I set it to?

Most domestic systems operate best around 3 bar, which is also the factory pre-set on this valve.

Q: Can this be used on drinking water systems?

Yes, it is suitable for potable water applications.

Q: Does it fit both 15mm and 22mm pipes?

Yes, this valve is designed to work with both connection sizes.

Q: Can it be installed in any position?

Yes, it supports both horizontal and vertical installation for flexibility.
