WFHT Electronic Dual Thermostat With Temperature Dial UFH

Description

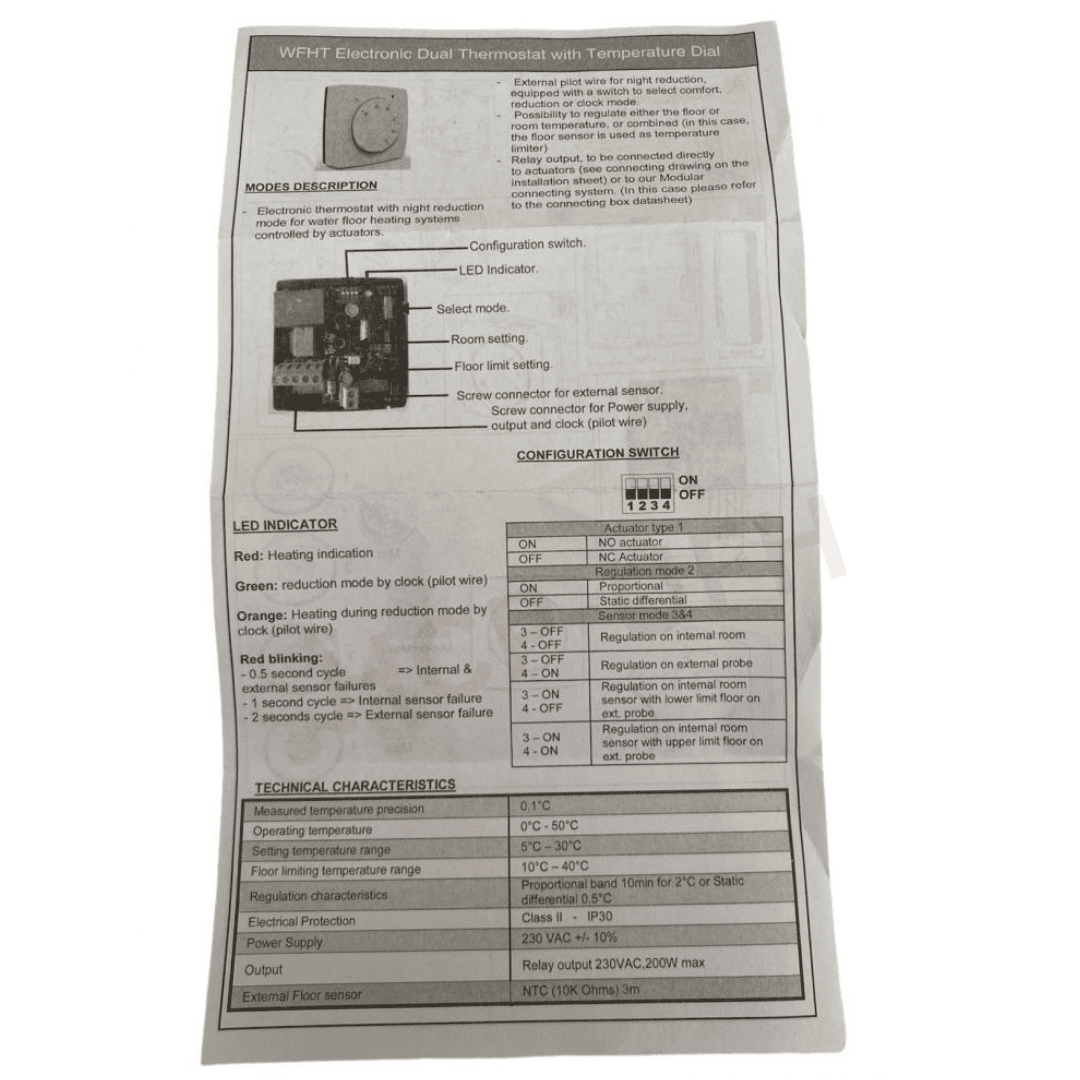

WFHT Electronic Dual Thermostat With Temperature Dial

The WFHT Electronic Dual Thermostat With Temperature Dial is a reliable and easy-to-use thermostat designed for controlling underfloor heating systems.

This dual thermostat supports both room temperature control and floor sensor regulation, helping maintain comfortable and energy-efficient heating performance.

Featuring a simple rotary temperature dial and multiple configuration modes, the thermostat is suitable for both domestic and commercial underfloor heating installations.

Ideal for controlling wet underfloor heating systems with actuators or modular connection systems.

Technical Specifications

• Power Supply: 230V AC ±10%
• Output: Relay output 230VAC / 200W max
• Operating Temperature: 0°C – 50°C
• Setting Temperature Range: 5°C – 30°C
• Floor Limiting Temperature Range: 10°C – 40°C
• External Floor Sensor: NTC (10K Ohms) 3m
• Electrical Protection: Class II – IP30
• Temperature Precision: 0.1°C

LED Indicator Functions

• Red: Heating indication
• Green: Reduction mode by clock
• Orange: Heating during reduction mode
• Red blinking: Sensor failure indication

Configuration Modes

The thermostat supports multiple control modes including:

• Internal room sensor regulation
• External floor probe regulation
• Combined room and floor limit control
• Proportional regulation
• Static differential regulation
