Description

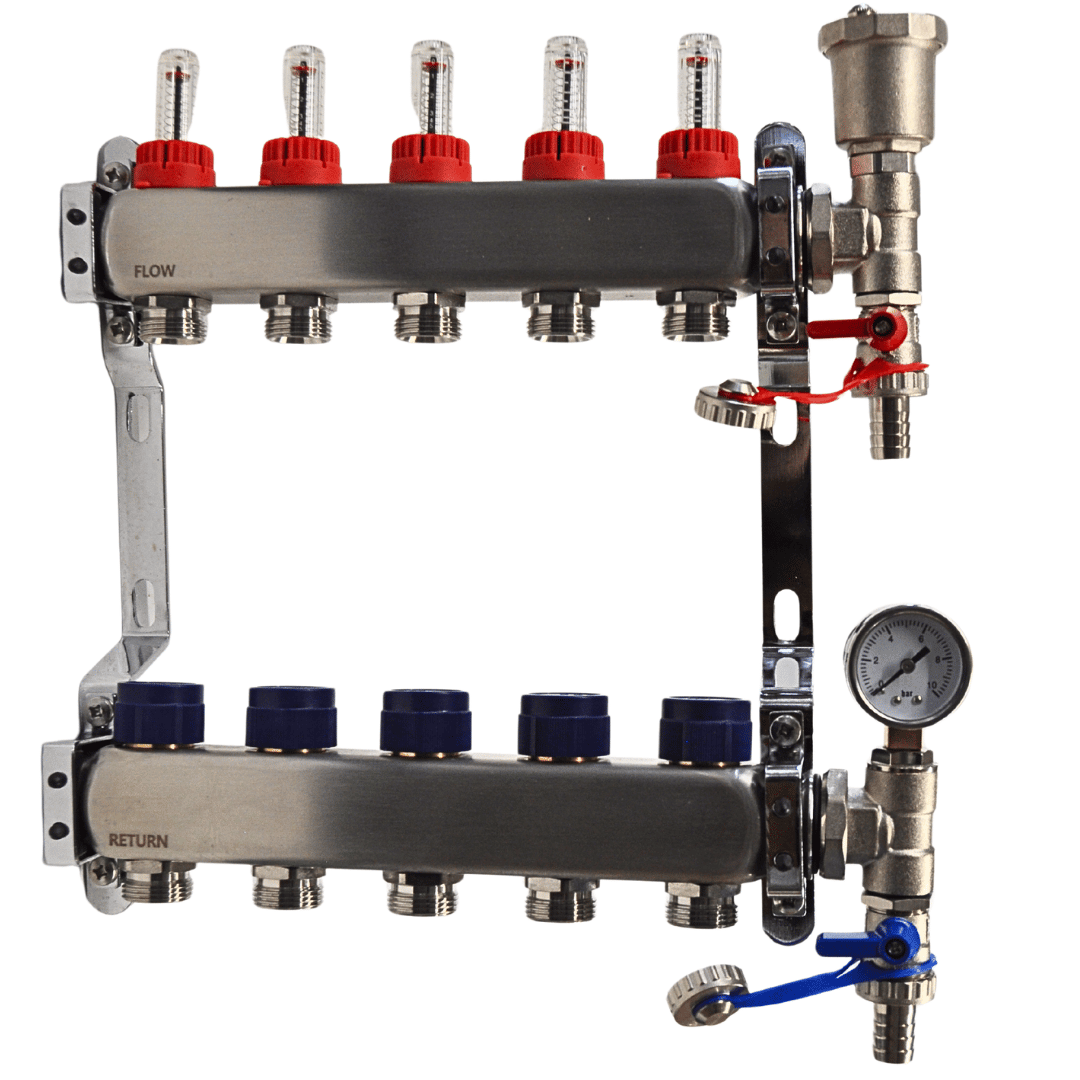

Underfloor Heating Manifold 5 Port with Pressure Gauge and Auto Air Vent
This 5 Port Underfloor Heating Manifold is precision-engineered to provide dependable and efficient performance in water-based underfloor heating systems.
Manufactured from durable nickel-plated materials, the manifold distributes heated water evenly across multiple heating circuits, helping maintain consistent room temperatures and efficient energy usage throughout the property.
Ideal for larger domestic zones, extensions, renovations, and new-build projects, this manifold includes integrated flow meters, pressure gauge, and automatic air vent for easier installation, balancing, and maintenance.
Designed for long-term reliability, the manifold supports accurate flow adjustment and dependable UFH control across multiple heating zones.
Reliable UFH Control
An underfloor heating manifold connects the heat source to individual heating pipe circuits and controls the flow of warm water through each loop.
Correct balancing helps achieve:
- Even heat distribution
- Improved heating efficiency
- Reduced energy consumption
- Greater comfort throughout the property
Integrated flow meters allow precise adjustment of each circuit for optimal performance.
Key Features
- Precision-engineered nickel-plated manifold
- 5 port configuration
- Integrated pressure gauge included
- Automatic air vent supplied
- Built-in flow meters for accurate balancing
- Suitable for domestic and commercial installations
- Corrosion-resistant construction
- Compatible with glycol heating mixtures
- Easy installation and maintenance
Coverage Area
Approximate floor coverage depending on pipe spacing:
- 100m² at 200mm pipe spacing
- 75m² at 150mm pipe spacing
Coverage may vary depending on insulation levels and heat loss calculations.
Product Dimensions
- Weight: 4.9kg
- Dimensions: 0.36 × 0.33 × 0.11 cm
